Product Specifications
E-System

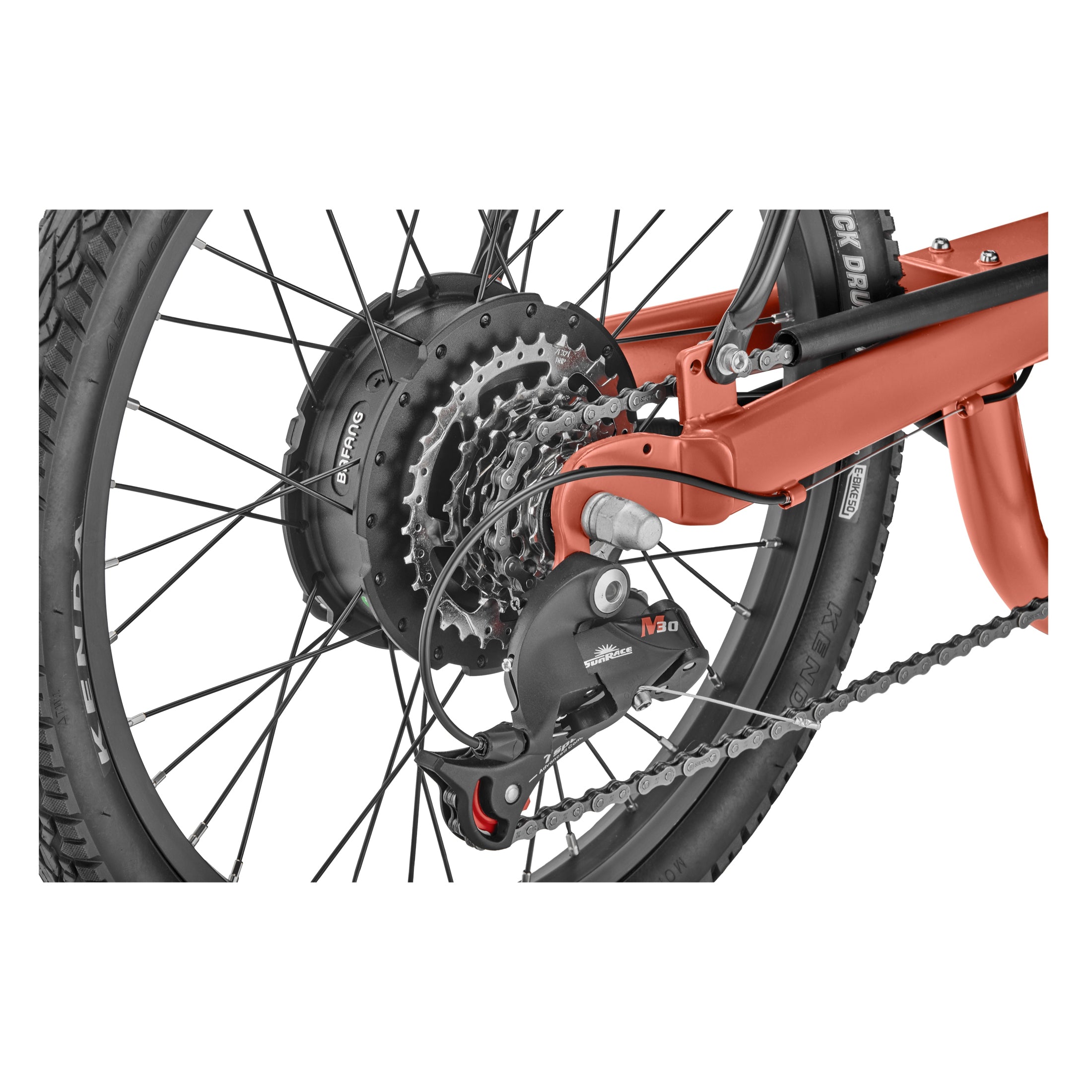

Motor
Bafang B1 48V / 350W mid-mount rear hub motor – 55-60 N·m max torque
Pedal Assist Sensor
Bafang B1 bottom bracket integrated torque/cadence sensor

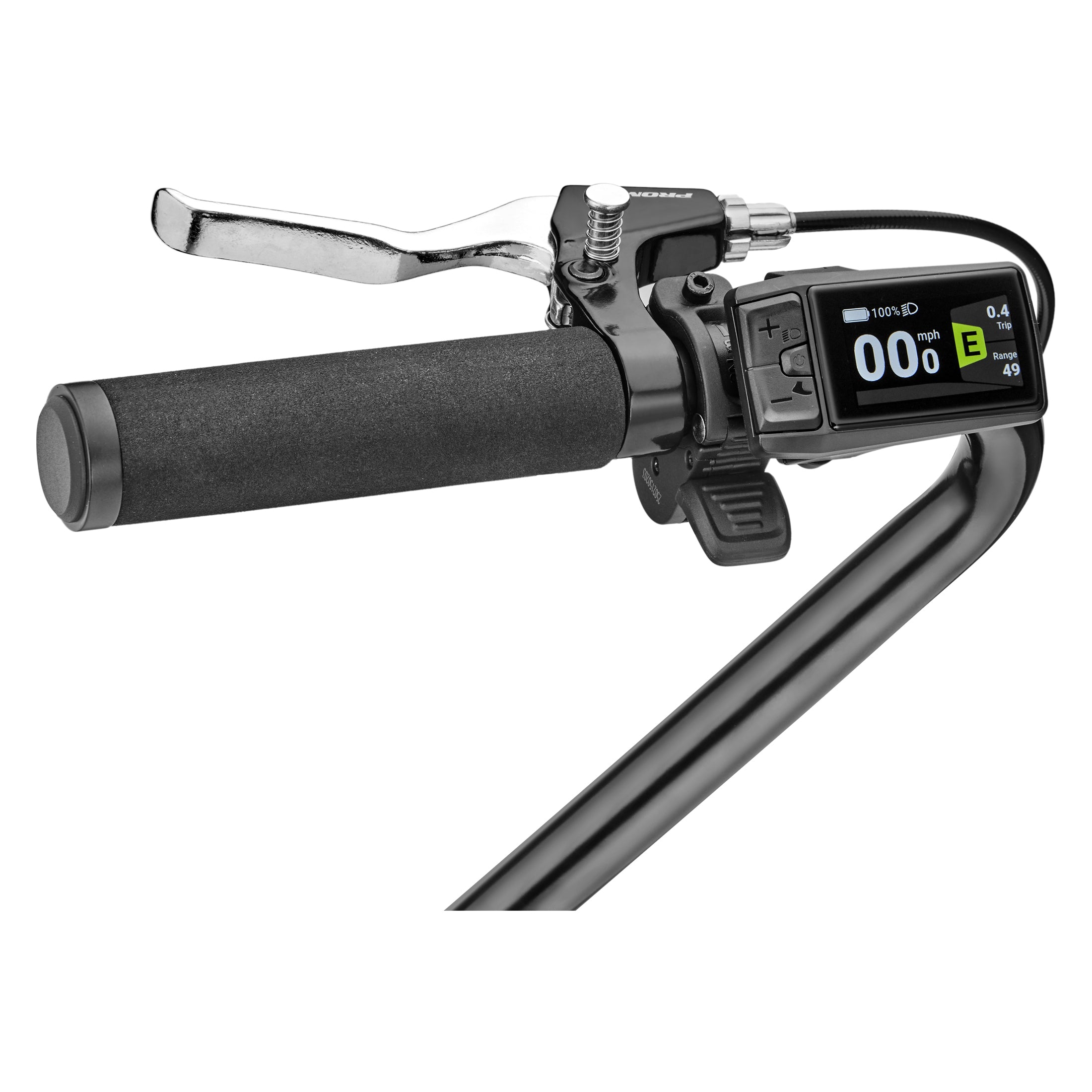

Display
Bafang B1 color display with Bluetooth and USB-C charging port for accessories
Throttle
B1 Removable thumb throttle

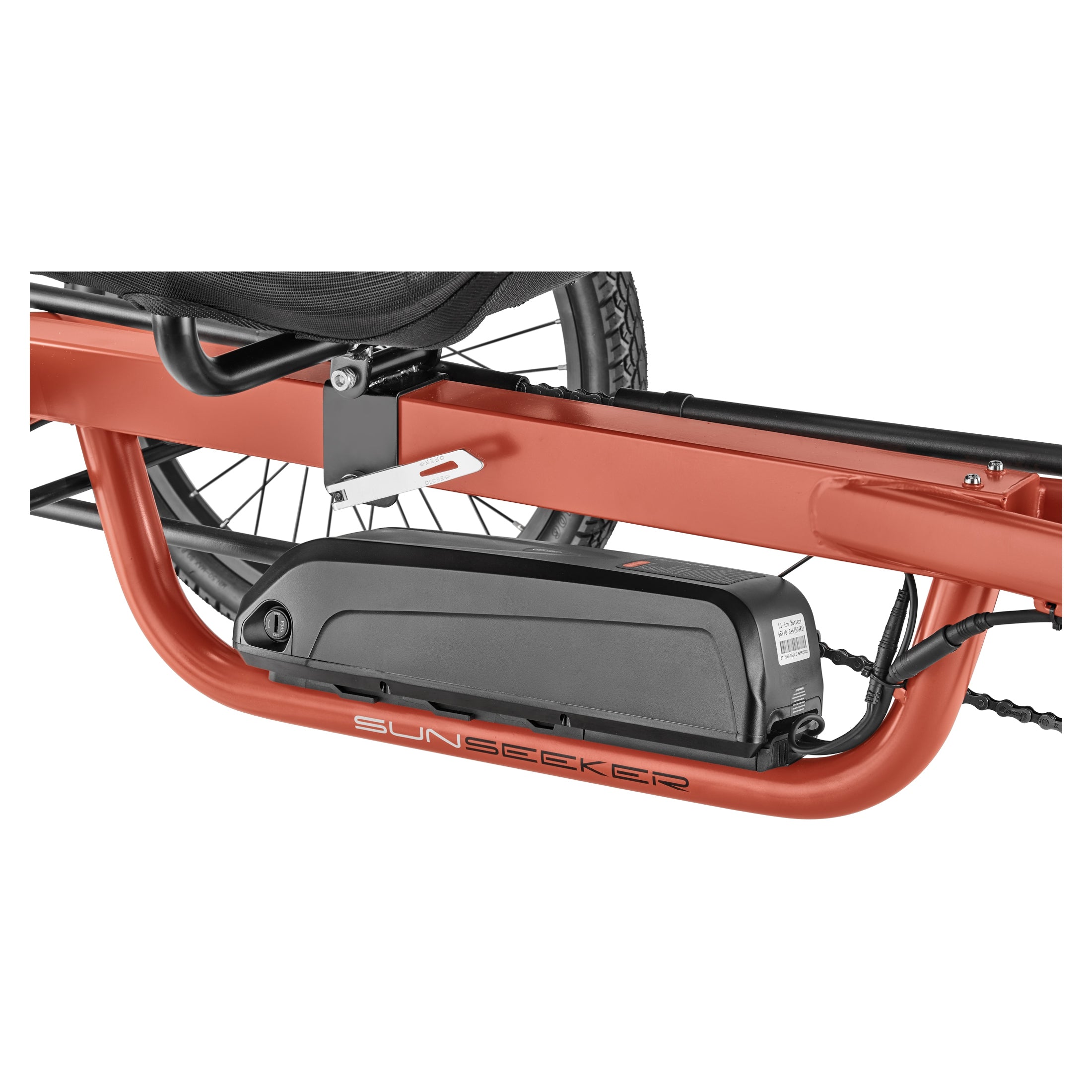

Battery
Bafang B1 48V / 10.5Ah (504 watt hours) li-ion battery
Charger
Bafang B1 2 amp smart charger (5–6 hours to fully charge from empty)
Speed
15 mph maximum motor-assisted speed (Class 2)
Range
Range: Eco PAS, mostly pedaling 42–48 mi / Throttle-only, 23–28 mi
Compliance
ACT Lab tested to UL 2849 & UL 2271 standards
Frameset
Frame
High-Tensile Steel, TIG-Welded
Front Frame
Tadpole Crank Boom, Chromoly Steel
Left Fork
Custom-Cast High-Tensile Steel, Threadless Stem, Disc Mount
Right Fork
Custom-Cast High-Tensile Steel, Threadless Stem, Disc Mount
Drivetrain
Rear Shifter
SunRace 7-Speed Trigger Shifter
Rear Derailleur
SunRace 7-Speed Direct Mount
Freewheel
SunRace (7-Speed) 13-32T

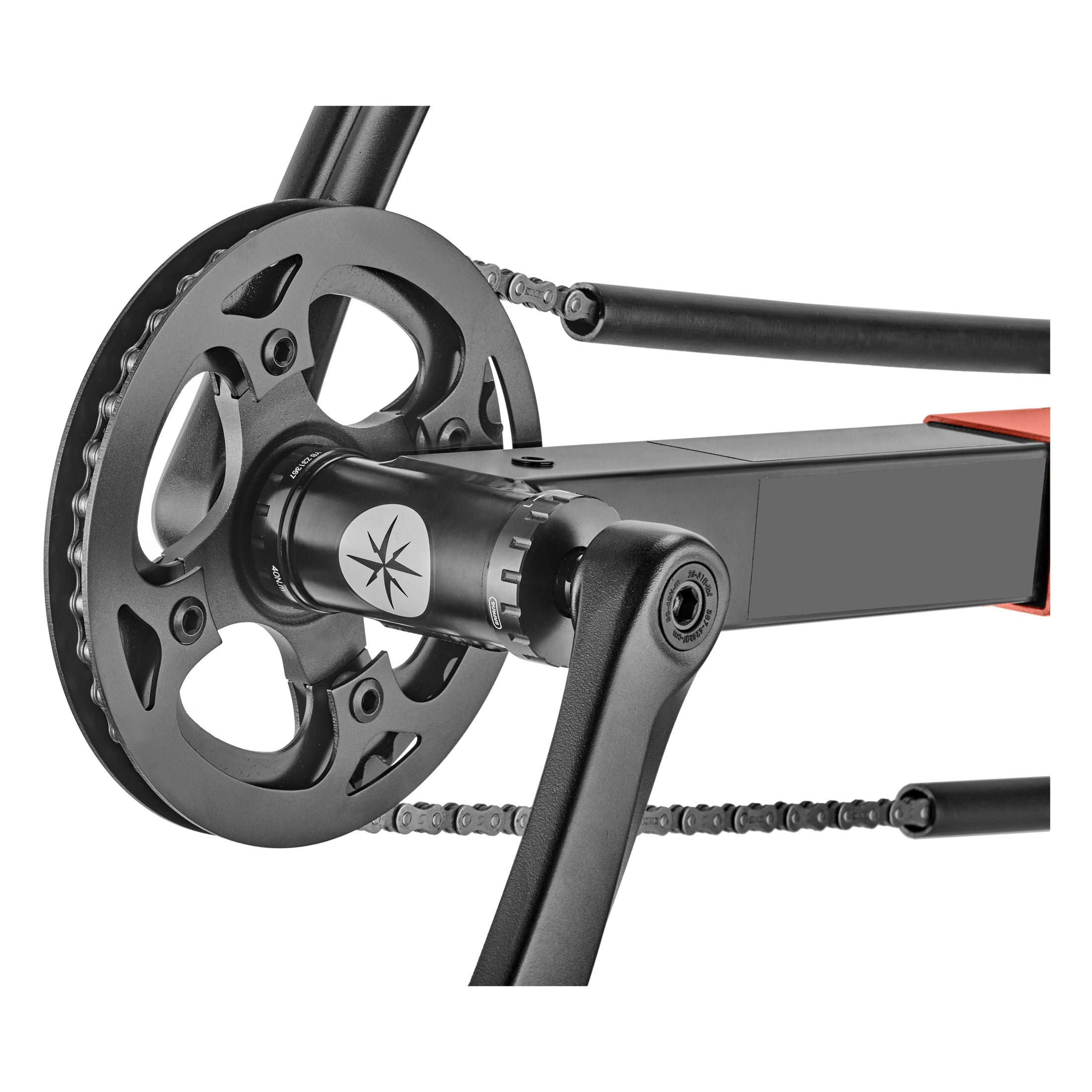

Crank Set
B1 Crank Arm Set 170mm L&R Arms Alloy
Chainwheel
B1 Chainring 38T 3/32" Steel
Spider
B1 Spider
Chainguard
B1 Chainguard Double Alloy
Bottom Bracket
Bafang B1 73 x 148mm square taper integrated torque/cadence sensor
Chain
K.M.C. 1/2 x 3/32" (286 Links)
Chain Tube
Guide Tube
Chain Tube Bracket
Double Spring w/Hardware
Chain Tube Clamp
Clamp w/Hardware
Pedals
Resin Body, 9/16"
Mid Drive Hub
Brakes
Front Brake Lever
Promax, w/Lock LH
Rear Brake Lever
Promax, w/Lock RH

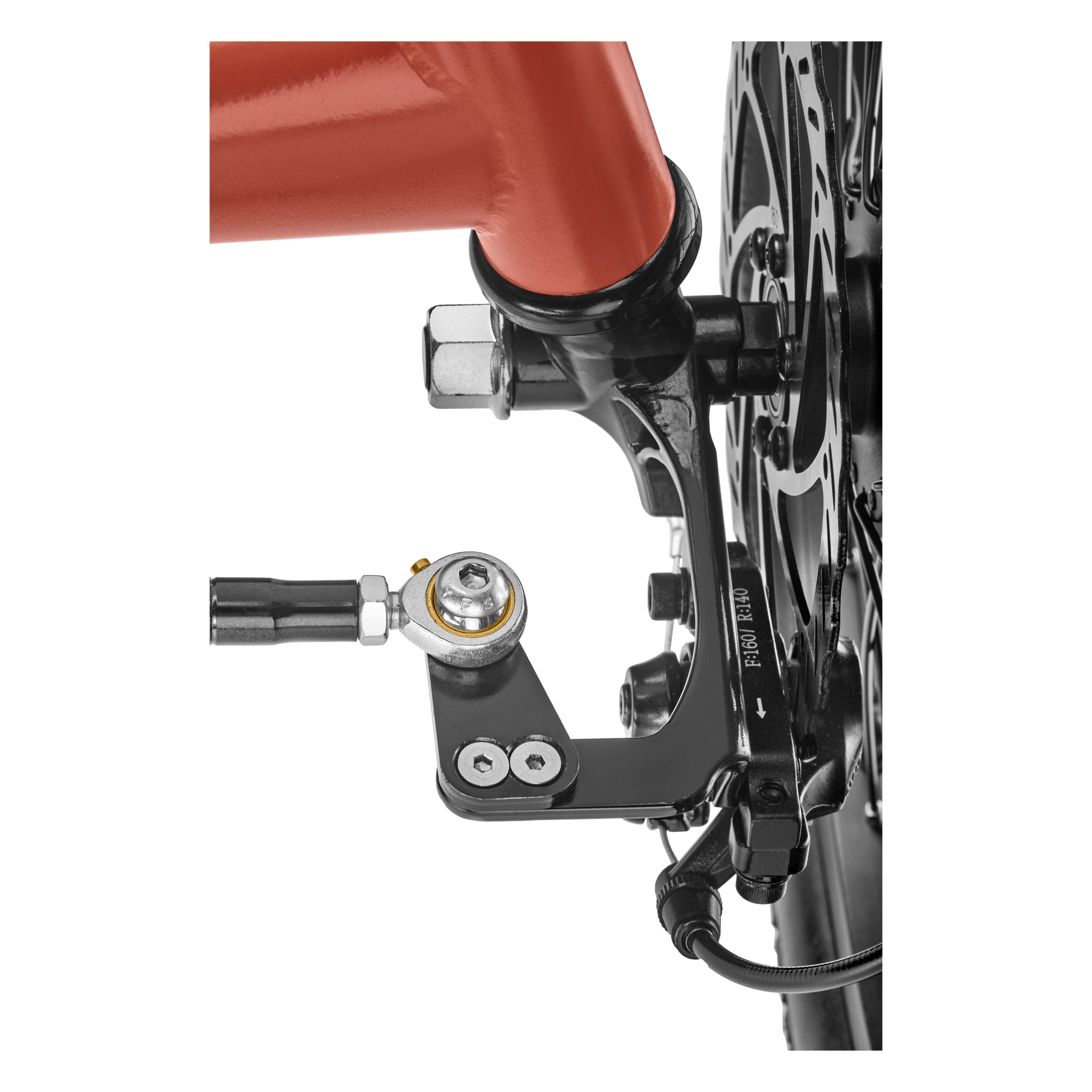

Front Brake
Promax Disc
Front Brake Rotor
160mm Rotor
Components
Headset
Steel, Caged Bearings, 28.6 x 34 x 30mm, Black
Right Handlebar
Tadpole Right Handlebar w/28.6mm Steerer Clamp
Left Handlebar
Tadpole Left Handlebar w/28.6mm Steerer Clamp
Grips
Locking, 130mm Left / 65mm Right
Wheels
Front Hub
Alloy, 36H x 13G Tadpole, Disc, Black
Front Rim
20'' x 36H x 13G, Alloy
Rear Rim
20'' x 36H x 13G, Alloy
Spokes
13G Stainess Steel ED Blk with brass nipples (F-182 / R- 127/129mm)
Tires
Kwick Drumlin E-Type 20 x 1.75" Black Wall
Weight
Weight
68 Lbs.
Weight Limit
300 Lbs.
Notes
Pricing & Specifications
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.
