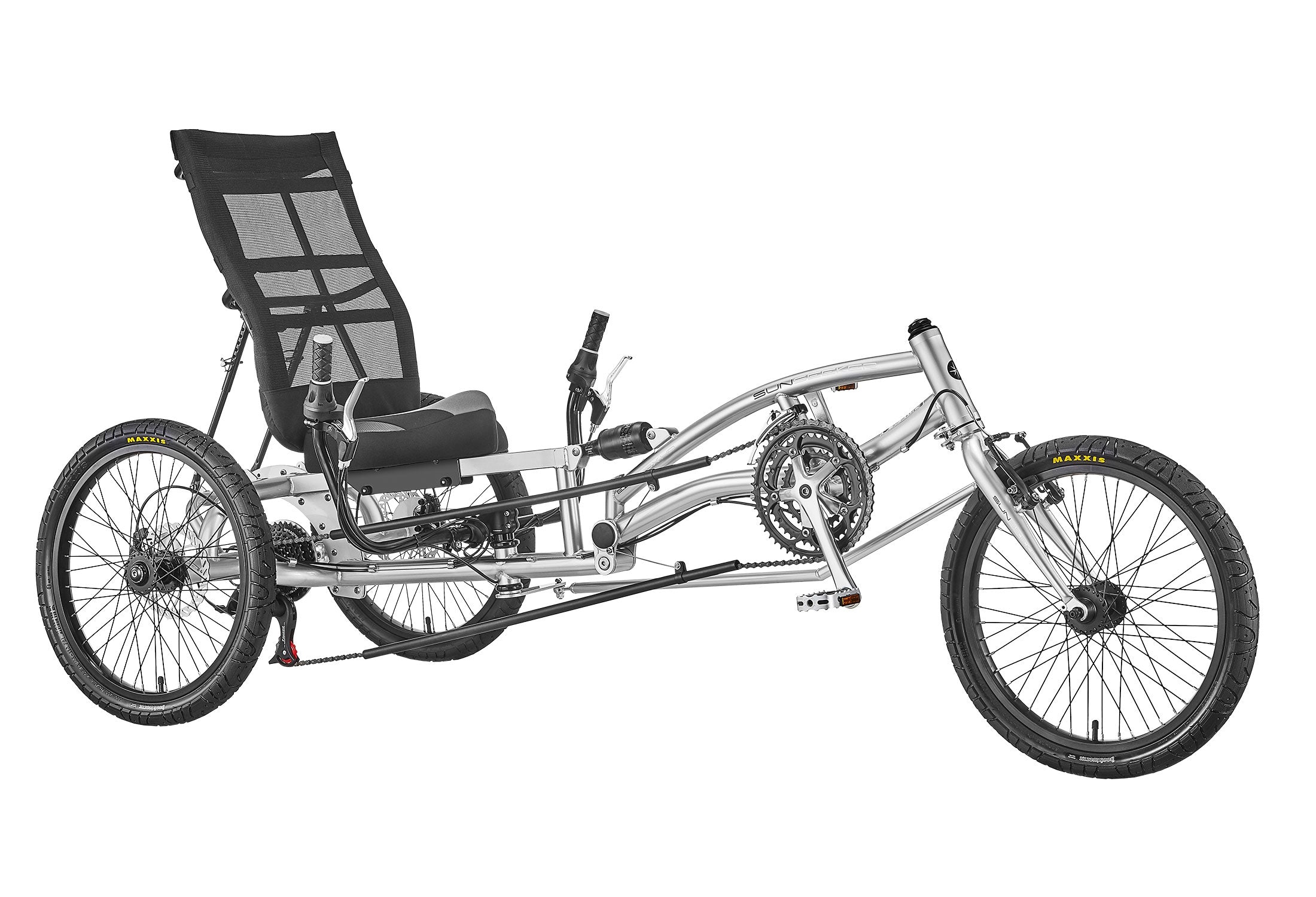

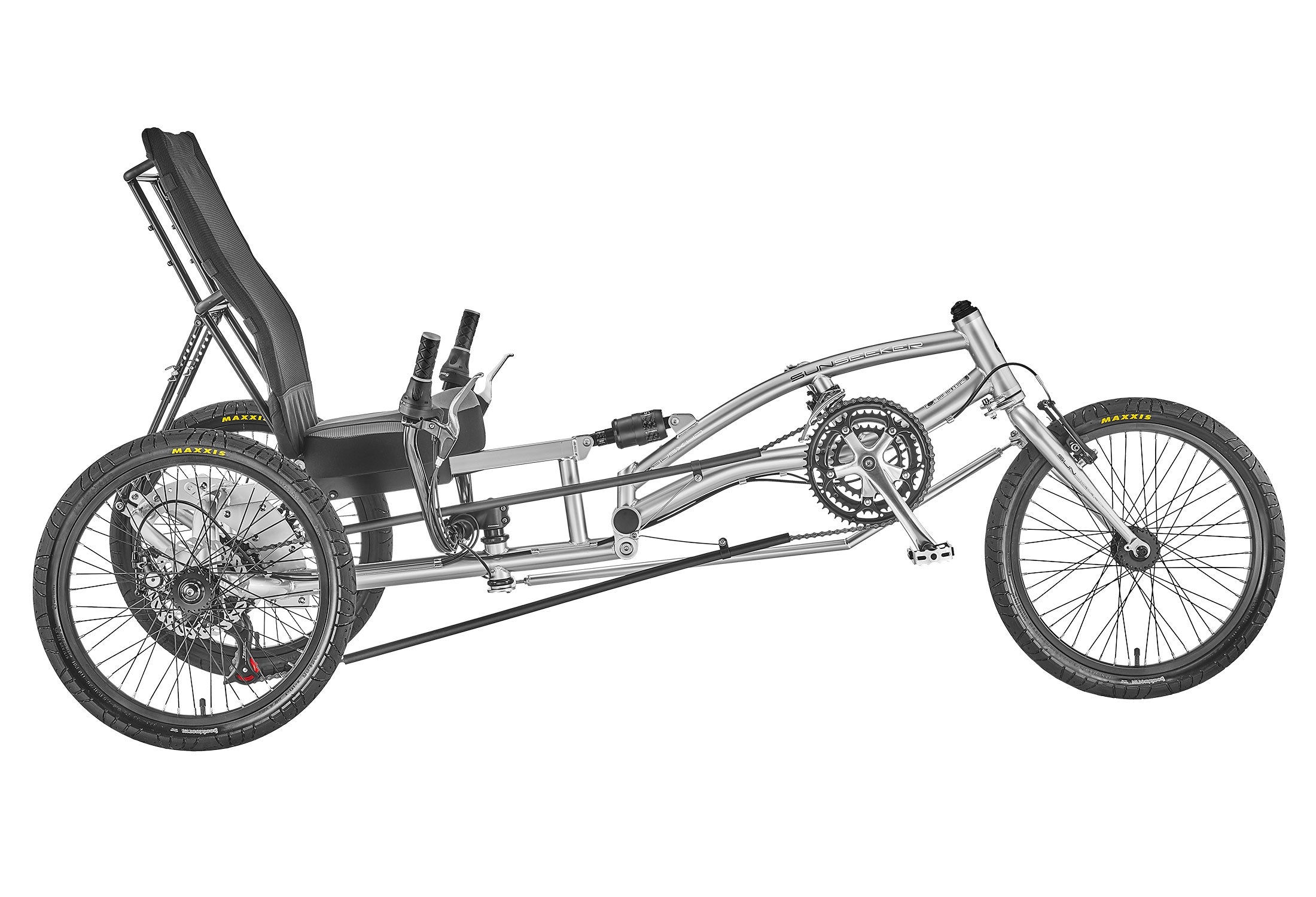

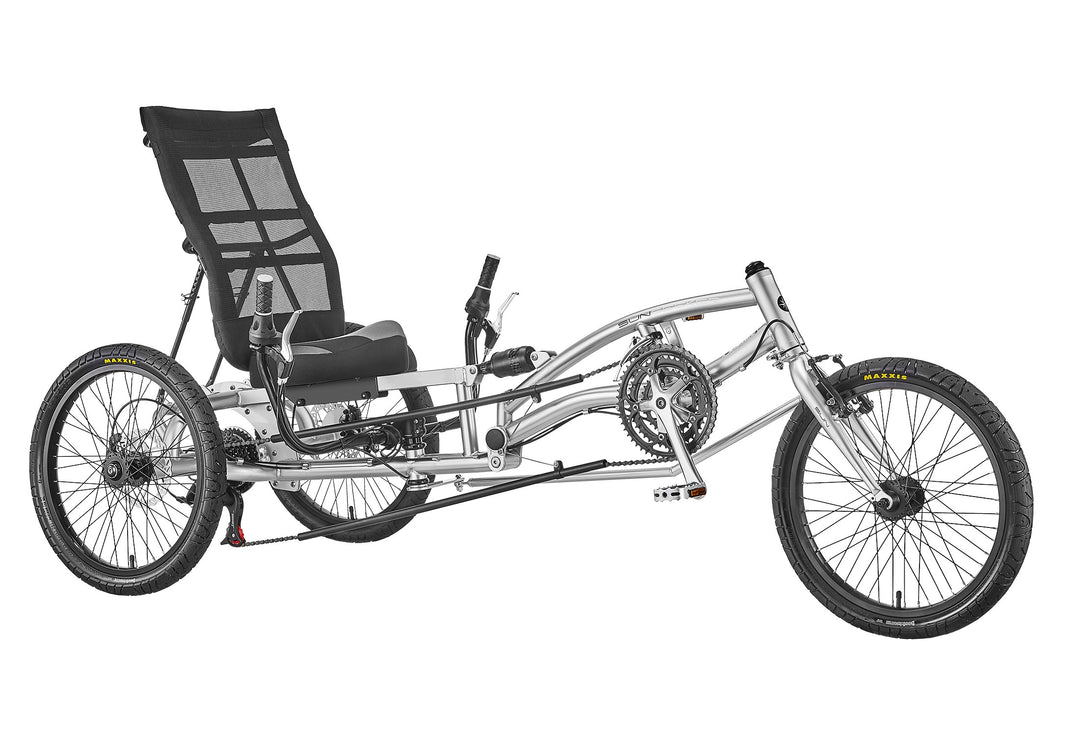

EZ-3 USX HD Trike
The EZ-3 USX HD provides all the stability and control available in recumbent trike technology while offering a little more thrill. And when we say HD we mean heavy duty, with 110 psi tires, 48 spoke wheels with double-wall rims, this trike will handle 400 pounds. Setting this trike apart from others is its low center of gravity attained by three 20-inch wheels that are cambered in the rear to increase cornering stability. Also, the EZ-3 USX HD offers powerful brakes on all three wheels, mid-frame suspension and under-the-seat steering. The EZ-3 USX HD might not be for the superhuman daredevil, but it is quite perfect for the casual to intermediate rider, and perfect for sunny days on the bike path or zooming down the boardwalks. The EZ-3 USX features Direct Steering, the new Slotted Seat adjustment system, and rattle-free and infinite-adjust seat struts.
- Wheel Base: 59.5" (151cm)
- Overall Length: 78" (198cm)
- Width: 32" (81cm)
- Seat Height: 18" (45cm)
- Weight: 65lbs
- Weight Limit: 400lbs
- X-Seam: 36-47"
Need help choosing the right recumbent?
Find your X-SeamSpecs
Frameset
| Frame | EZ3 USX HD Main Frame, Custom Steel, TIG-Welded |
| Left Frame | EZ3 USX HD LH Main Frame Section, Custom Steel, TIG-Welded |
| Front Frame | EZ3 USX HD Front Frame, Custom Steel, TIG-Welded |
| Frame Bearing | Frame Pivot Bearing, 32x12mm |
| Shock | EZ3 USX HD Shock, KS-261, 150mm |
| Frame Pivot Bolt | Frame Pivot Bolt, 12mm |
| Fork | 1-1/8" High Tensile Steel for USX HD, D-Blade w/Steer Tab |
Drivetrain
| Front Shifter | SUNRACE TSM63 3-Speed Twist |
| Rear Shifter | SUNRACE TSM21 7-Speed Twist |
| Front Derailleur | Microshift FD-M22, DP, 31.8 |
| Rear Derailleur | SUNRACE RDM37 GS 7-Speed |
| Freewheel | Sunrace (7-Speed) 14-34T |
| Freewheel Adapter | Freewheel Adapter Threaded |
| Crank Set | Alloy, 3-Piece, 170x52/42/32T |
| Bottom Bracket | Sealed Cartridge, 68 x 118mm |
| Chain | K.M.C. Z51 1/2 x 3/32'' (216 Links) |
| Chain Tube | Guide Tube |
| Chain Tube Bracket | Double Spring w/Hardware |
| Chain Tube Clamp | Clamp w/Hardware |
| Pedals | Resin Body w/Alloy Cage, 9/16" |
Brakes
| Rear Brake Lever | Linear Dual Pull, Black/Silver |
| Front Brake | Alloy, Linear Pull, Black |
| Rear Brake | Promax DSK-400 Disc w/160mm Rotor |
Components
| Headset | Steel Integrated, 28.6x44x30mm, Black |
| Rear Headset | Steel, 28.6x34x30mm Threadless for Underseat Steering |
| Handlebar | Alloy, Recumbent, Underseat |
| Right Handlebar | Right Handlebar Extension USX 22.2mm |
| Left Handlebar | Left Handlebar Extension USX 22.2mm |
| Stem | Alloy, Threadless, 28.6 x70mm x25deg x25.4mm Clamp, Black |
| Grips | Kraton Rubber-Gel, 75mm, 2-Tone Black/Grey |
| Front Brake Lever | Linear Pull w/Lock, Black/Silver |
| Rear Brake Lever | Linear Dual Pull, Black/Silver |
| Saddle | Recumbent, w/Tri-Stitch Cover |
Wheels
| Front Hub | Alloy, 48H x 14G with Q/R Axle, Black |
| Rear Hub | Alloy, 48H x 14G with 14mm Bolt-On Axle, Black, For F/W, Disc Compatible |
| Front Rim | Alloy, Double Wall 20'' x 48H x 14G, Black |
| Rear Rim | Alloy, Double Wall 20'' x 48H x 14G, Black |
| Spokes | 14G Stainless Steel ED Blk with brass nipples (F-182 / R-182 / N-14mm) |
| Front Tire | Maxxis Hook Worm 20 x 1.95", 110psi |
| Rear Tire | Maxxis Hook Worm 20 x 1.95", 110psi |
Weight
| Weight | 65 Lbs. |
| Weight Limit | 400 Lbs. |
Notes
| Pricing & Specifications | We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes. |
