Fat-Tad CXs Tadpole
Fat-Tad CXs Tadpole
Sun Seeker

Fat-Tad CXs Tadpole

Sale price$2,499.99

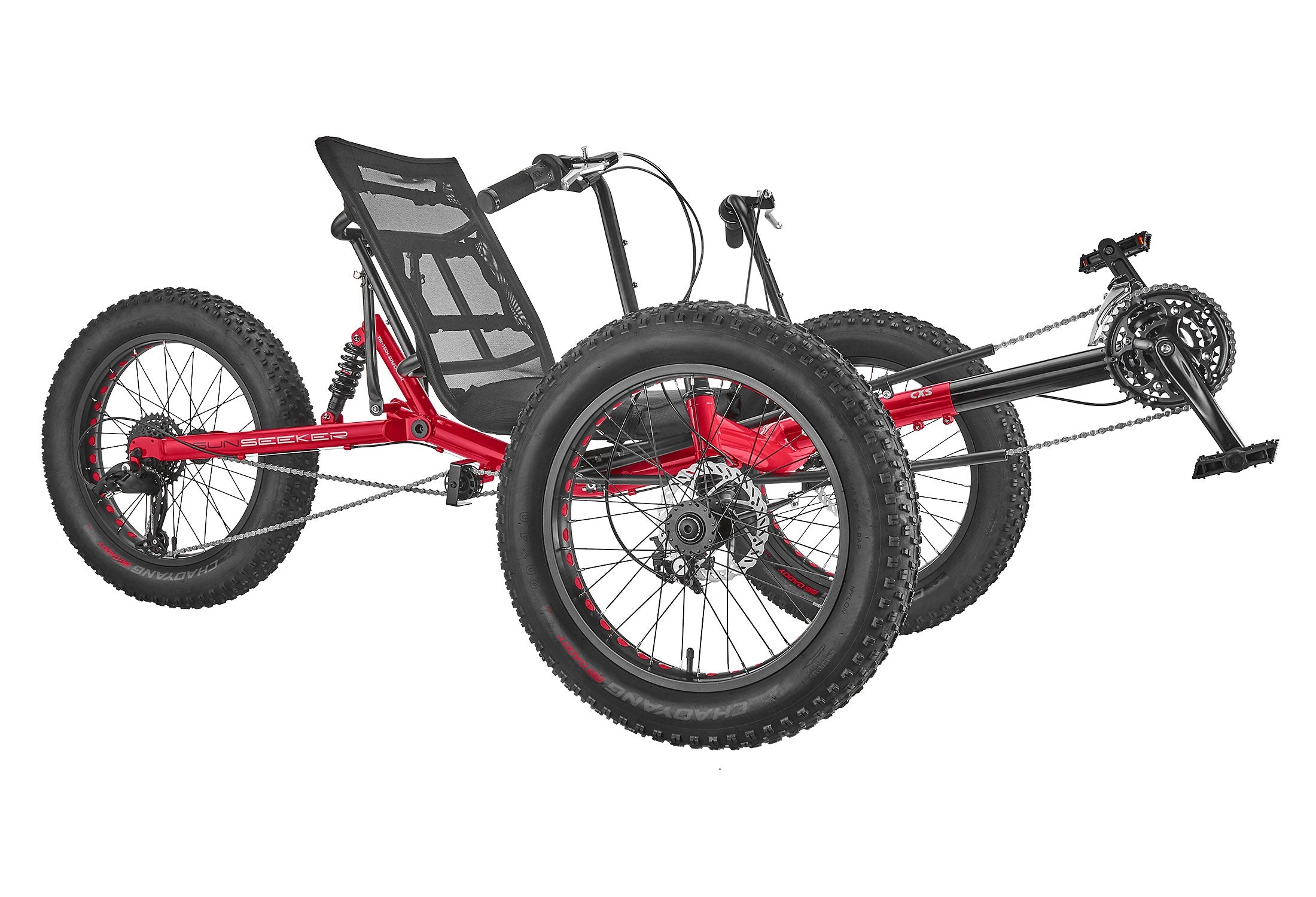

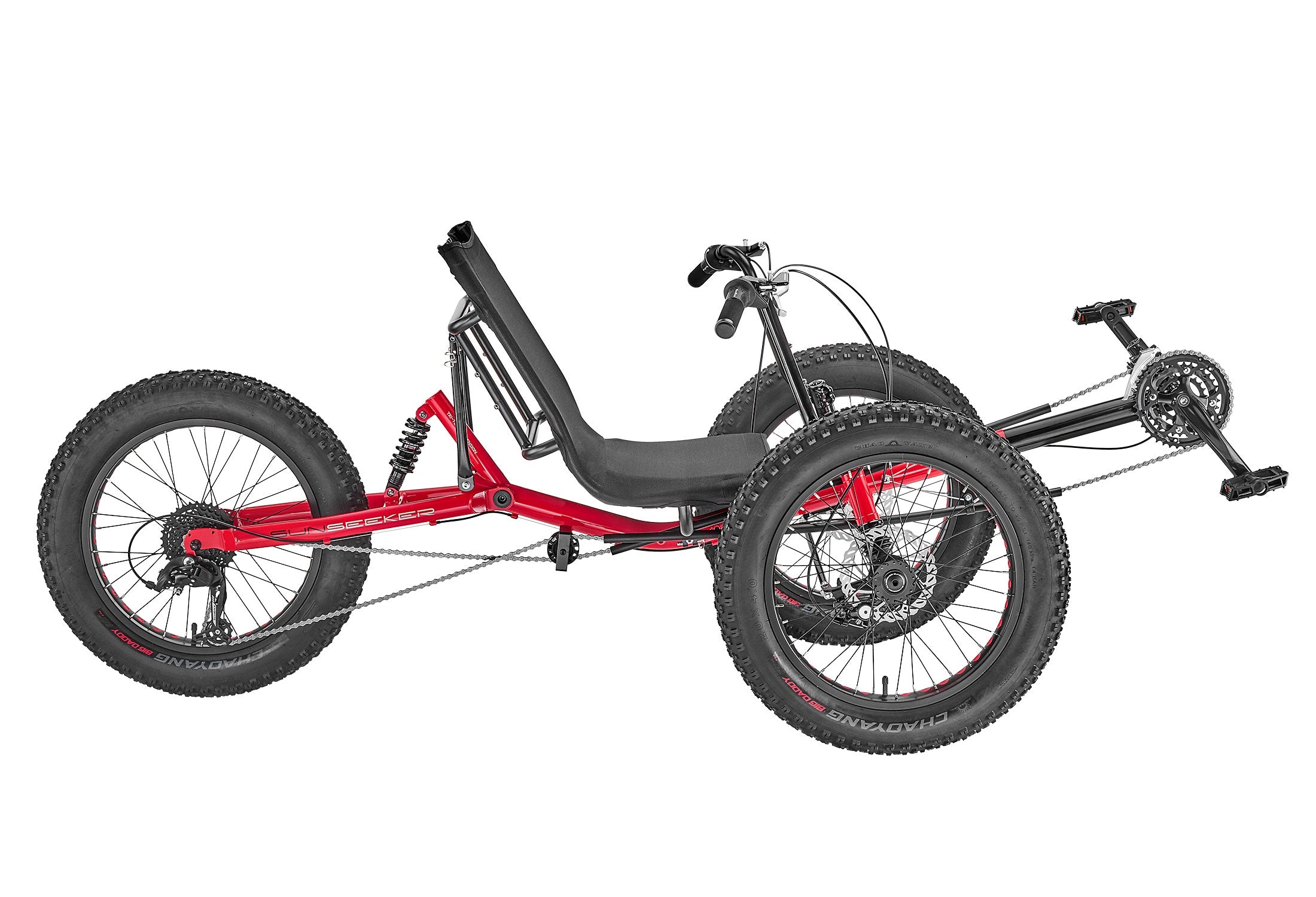

The Sun Seeker Fat Tad CX is the most fun youll have this low to the ground off road. This bad boy is equipped with front and rear suspension, chromoly frame and 4 inch wide off road tires! The Fat Tad will handle sand and gravel like no other trike out there. Other features include aluminum seat frame, padded seat and provisions to mount 4 water bottle cages.


  • Rear coil-over suspension and integrated front suspension
  • Alloy rims, 55mm wide, 190mm rear hub with Q/R
  • Promax mechanical disc brake system for front wheels
  • 20 x 4.0" tires tuned for all trail conditions
  • Full-range SRAM shifting with 3x8 gearing
  • Ergonomic chromoly handlbars
  • Air-mesh seat with alloy seat frame
  • 10" of trail-ready ground clearance
  • ----------------------------------------------------------------
  • Wheel Base: 46.25" (118cm)
  • Overall Length: 78" - 83.5" (198 - 212cm)
  • Width: 36.25" (92cm)
  • Seat Height: 16.5"- 17.75" (42-45cm)
  • Bottom Bracket Height: 20" - 21.5" (51-55cm)
  • Weight: 57 lbs
  • Weight Limit: 300 lbs
  • X-Seam: 37" - 50.5" (94-128cm)
  • (Boom modification may be required from 37" - 40")
Style: Fat-Tad CXs Tadpole
SKU: 670241

Need help choosing the right recumbent?

Find your X-Seam

Specs

Frameset

Frame 4130 Chromoly, TIG-Welded
Front Frame Tadpole Crank Boom, Chromoly Steel
Rear Frame Rear Frame Suspension Swingarm
Shock FAT-TAD CXs Shock, 150mm
Frame Pivot Bolt Frame Pivot Bolt, FAT-TAD Swingarm
Left Fork Custom-Cast High Tensile Steel, Threadless Stem, Disc Mount w/Integrated Suspension
Right Fork Custom-Cast High Tensile Steel, Threadless Stem, Disc Mount w/Integrated Suspension

Drivetrain

Front Shifter SunRace M2 3-Speed Twist Shifter
Rear Shifter SunRace M2 8-Speed Twist Shifter
Front Derailleur SunRace FD-M300, DP, 31.8
Rear Derailleur SunRace RD-M41
Freewheel SunRace (8-Speed Cassette) 11-34T
Crank Set 3-Piece Alloy, 170mm, 22, 32, 42T, Black
Bottom Bracket Sealed Cartridge, 100 x 164mm (v1), 68 x 113mm (v2)
Chain K.M.C., 1/2" x 3/32", Sil/Gry (316 Links)
Chain Guide Dual Jockey Wheel
Chain Guide Hardware Guide Wheel Hardware Double
Chain Tube Guide Tube
Chain Tube Bracket Double Spring w/Hardware
Chain Tube Clamp Clamp w/Hardware
Pedals Nylon Fiber Body, 9/16" Chromoly Spindle

Brakes

Rear Brake Lever Promax Linear Pull, w/Lock
Front Brake Promax Mechanical Disk, 160mm Rotor

Components

Headset Steel, Caged Bearings w/Seal, 28.6 x 34 x 30mm
Right Handlebar Tadpole Right Handlebar w/28.6mm Steerer Clamp
Left Handlebar Tadpole Left Handlebar w/28.6mm Steerer Clamp
Grips EVA Rubber, Locking, 75mm, Black
Front Brake Lever Promax Linear Pull, w/Lock
Rear Brake Lever Promax Linear Pull, w/Lock

Wheels

Front Hub Alloy, 36H x 14G, Tadpole, Disc
Rear Hub Alloy, 36H x 14G, 190mm with Q/R Axle (For Cassette)
Front Rim 20" x 36H x 14G x 54mm, Alloy w/Cutouts
Rear Rim 20" x 36H x 14G x 54mm, Alloy w/Cutouts
Spokes 14G Stainless Steel ED Blk with brass nipples (F- 178 / RD-181 - RND-186 / N-16mm)
Front Tire 20 x 4.0" Fat Tire, Black Wall
Rear Tire 20 x 4.0" Fat Tire, Black Wall

Weight

Weight 57 Lbs.
Weight Limit 300 Lbs.

Notes

Pricing & Specifications We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.
