X3 AX Trike
X3 AX Trike
Sun Seeker

X3 AX Trike

Sale price$2,749.99

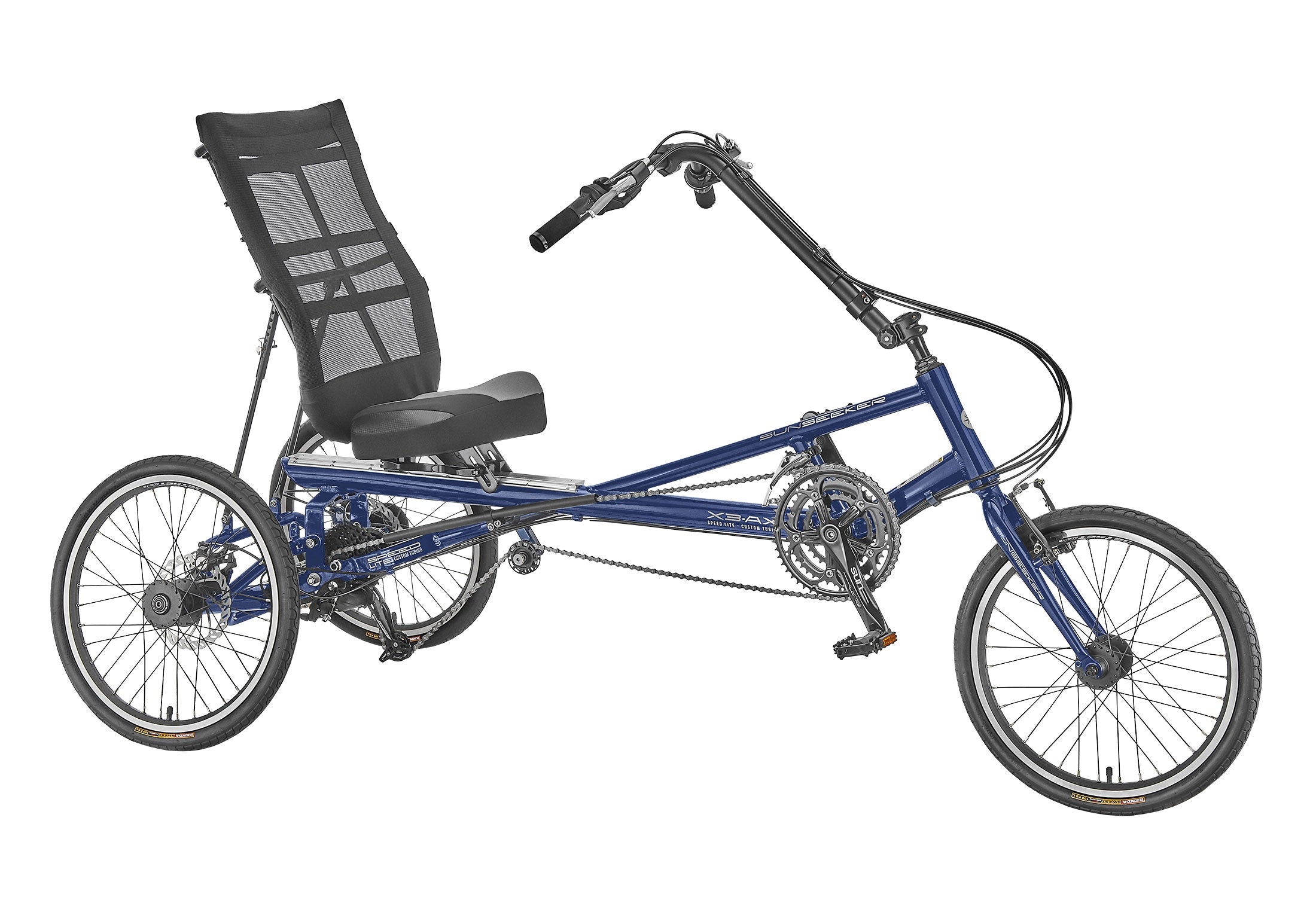

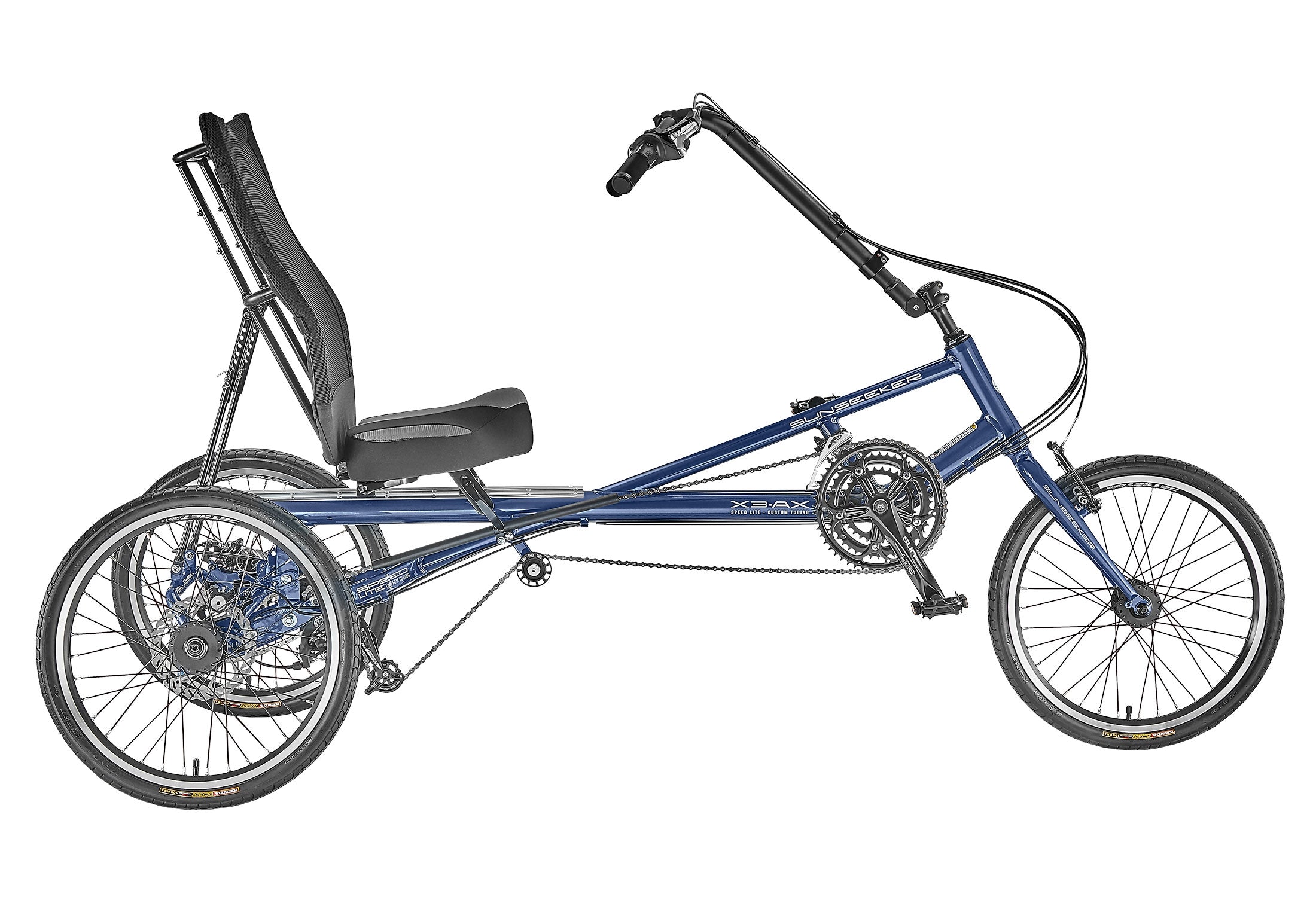

The X3-AX is a performance trike, but not designed exclusively for performance riders. This trike has the Seat Track System with tilt adjustment. With this system, no seat components touch the frame. Also featured is the Mono-Bar tilting and telescoping handlebar system. All three wheels are 20 inches with 100 psi, low-rolling resistance tires for an incredibly smooth and effortless ride. The rear wheels are cambered for stability and tracking along with a 24 speed drive train. A dual-disc rear brake system combined with a 7005 aluminum frame complete the package. Though its designed with performance in mind, the X3-AX is perfect for intermediate and casual riders looking for some light touring, commuting or just plain bike path fun.


  • Wheel Base: 56" (142cm)
  • Overall Length: 75" (191cm)
  • Width: 30" (76cm)
  • Seat Height: 20" (51cm)
  • Weight: 49 lbs.
  • Weight Limit: 300lbs
  • X-Seam: 31-45"
Style: X3 AX Trike
SKU: 68609

Need help choosing the right recumbent?

Find your X-Seam

Specs

Frameset

Frame 7005 Series Aluminum, TIG-Welded
Rear Frame Rear Frame Unit Split-Axle Cambered
Fork 1-1/8'' Hi Tensile Steel, Straight Tapered Legs, Single Eyelets

Drivetrain

Front Shifter SRAM 3.0 3-Speed Grip Shift
Rear Shifter SRAM 3.0 8-Speed Grip Shift
Front Derailleur Microshift 31.8 DP
Rear Derailleur SRAM X4, Long Cage, Black
Sprocket Fixed Sprocket 15mm x 18T
Freewheel SRAM 11-32 8sp
Crank Set Alloy, 3-Piece, 170x52/42/32T
Bottom Bracket Sealed Cartridge, 68 x 118mm
Chain 1/2 x 3/32'' (190 Links)
Rear Chain 1/2 x 1/8" (46 Links)
Chain Guide Single Guide Wheel
Chain Guide Hardware Guide Wheel Hardware Single
Chain Tube Guide Tube
Chain Tube Bracket Double Eyelet Bracket for Guide Tube
Chain Tube Clamp Clamp w/Hardware
Pedals Alloy, Resin Body, 9/16"
Mid Drive Hub 135mm Mid-Hub Cassette 8spd, 6-Bolt Disc

Brakes

Rear Brake Lever Alloy, Dual Cable Pull
Front Brake Alloy, Linear Pull
Rear Brake Promax Disc Pair w/160mm Rotor

Components

Headset Semi-Integrated, Steel, 28.6 x44 x30mm Black
Handlebar Alloy, Recumbent, 560W x 36deg x 25.4clamp, BLK
Stem Quill Adapter Alloy, 28.6x25.4x240mm Black
Grips 2-Tone Kraton Gel
Front Brake Lever Alloy, w/Park Lock
Rear Brake Lever Alloy, Dual Cable Pull
Saddle Contoured Foam w/Tri-Color Cover

Wheels

Front Hub Alloy, 36H x 14G with Q/R Axle, Black
Rear Hub Trike Alloy, Splined, Disk, 36H, Black
Front Rim Alloy, Double Wall 20'' x 36H, MSW w/Eyelets, Black
Rear Rim Alloy, Double Wall 20'' x 36H, MSW w/Eyelets, Black
Spokes 14G Stainless Steel ED Blk with brass nipples (F- 178 / RD-181 - RND-186 / N-16mm)
Front Tire 20x1.25 BW Kenda Kwest 100psi
Rear Tire 20x1.25 BW Kenda Kwest 100psi

Weight

Weight 49 Lbs.
Weight Limit 300 Lbs.

Notes

Pricing & Specifications We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.
